Yunxing Cable Tray factory and production photos

Verification summary

What these photos show

The storefront image visibly shows the Yunxing mark, Guangzhou Yunjunxing Yongyu Cable Tray Co., Ltd. name, product scope and telephone number. Original product and production photos show aluminum ladder tray, hot-dip galvanized ladder tray and worker fabrication. The workshop-equipment images are visually enhanced company-provided views and are not used alone to establish equipment specifications or capacity. Review the six full electronically signed 2026 test reports for third-party evidence.

Field coating readingsThe two photographed points display 98.1 μm and 89.8 μm. Both exceed an 86 μm project target at those individual points, but they are not a batch average, a minimum result or a third-party conclusion.

Factory workshop

Equipment and production environment

These visually enhanced environment images are provided for presentation. Equipment model, quantity and capacity should be verified through source records, order confirmation or an on-site audit.

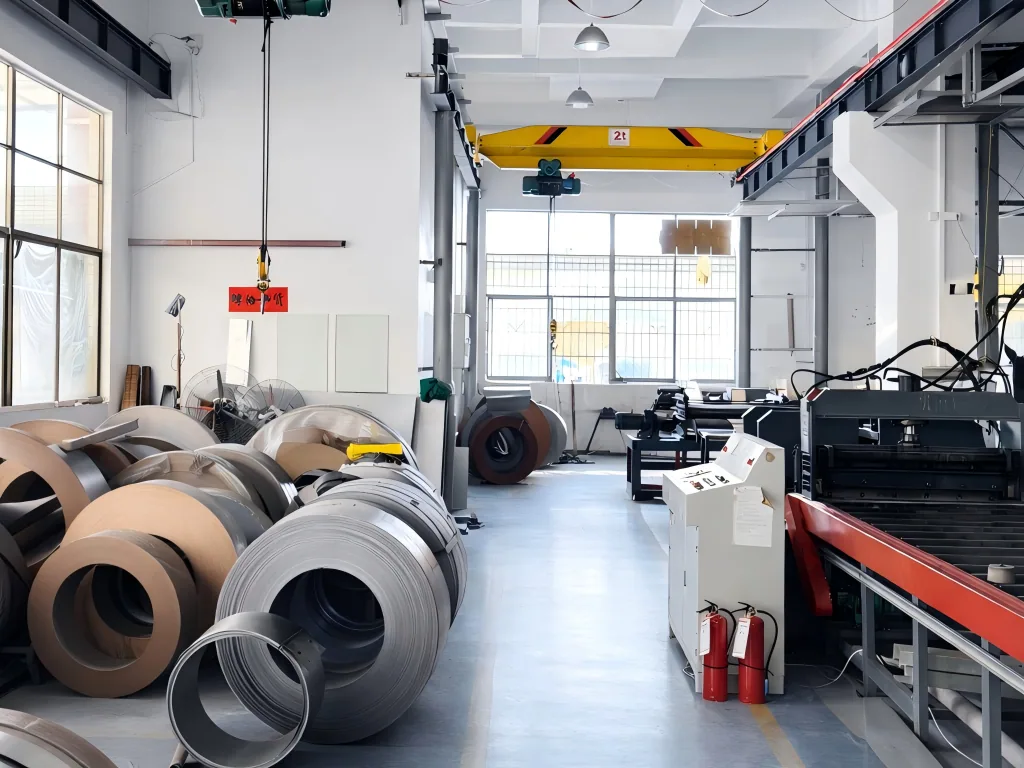

**Guangzhou cable tray workshop**Visually enhanced, company-provided workshop view with sheet coils, lifting equipment and cable tray forming equipment. Equipment specifications and capacity require technical or on-site verification.

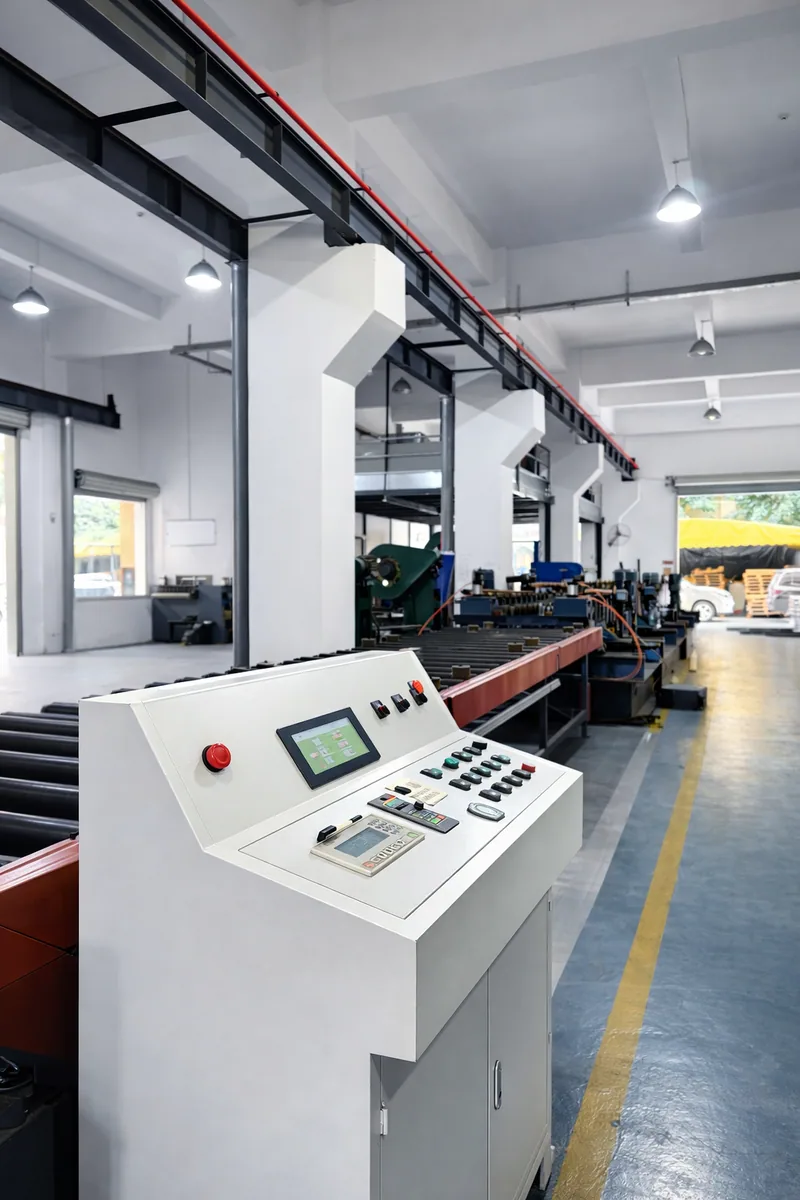

**Cable tray forming-line control area**Visually enhanced, company-provided view of a production-line control station and workshop aisle. It is not standalone evidence of machine model or capacity.

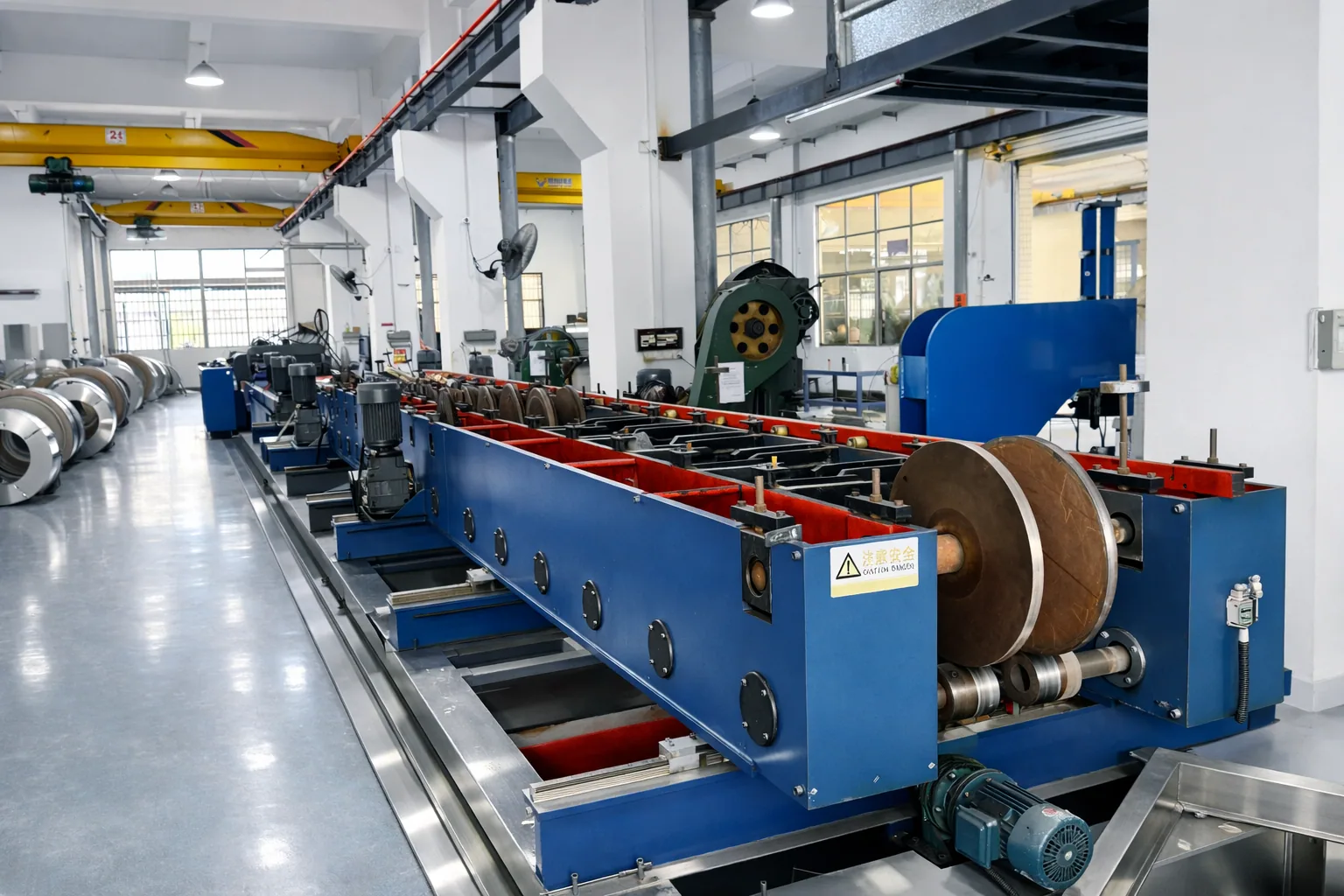

**Cable tray roll-forming line**Visually enhanced, company-provided workshop view of roll-forming equipment, coil area and production aisle.

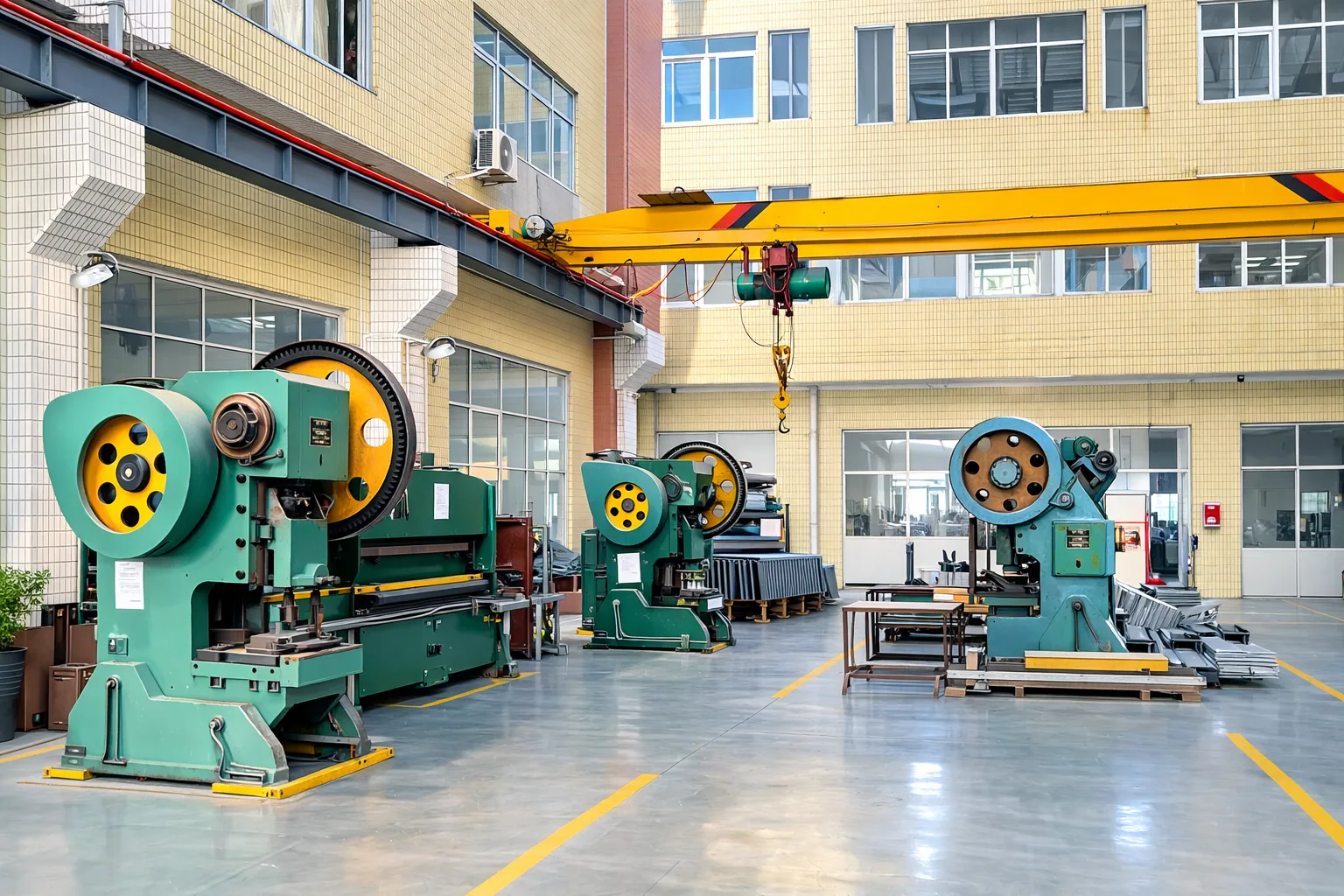

**Press equipment and production area**Visually enhanced, company-provided workshop view of press equipment, lifting equipment and production materials.

Finished products

Aluminum and hot-dip galvanized cable tray

The photos help verify product form and surface condition. Each project still requires confirmation of dimensions, thickness, material, finish and fitting scope.

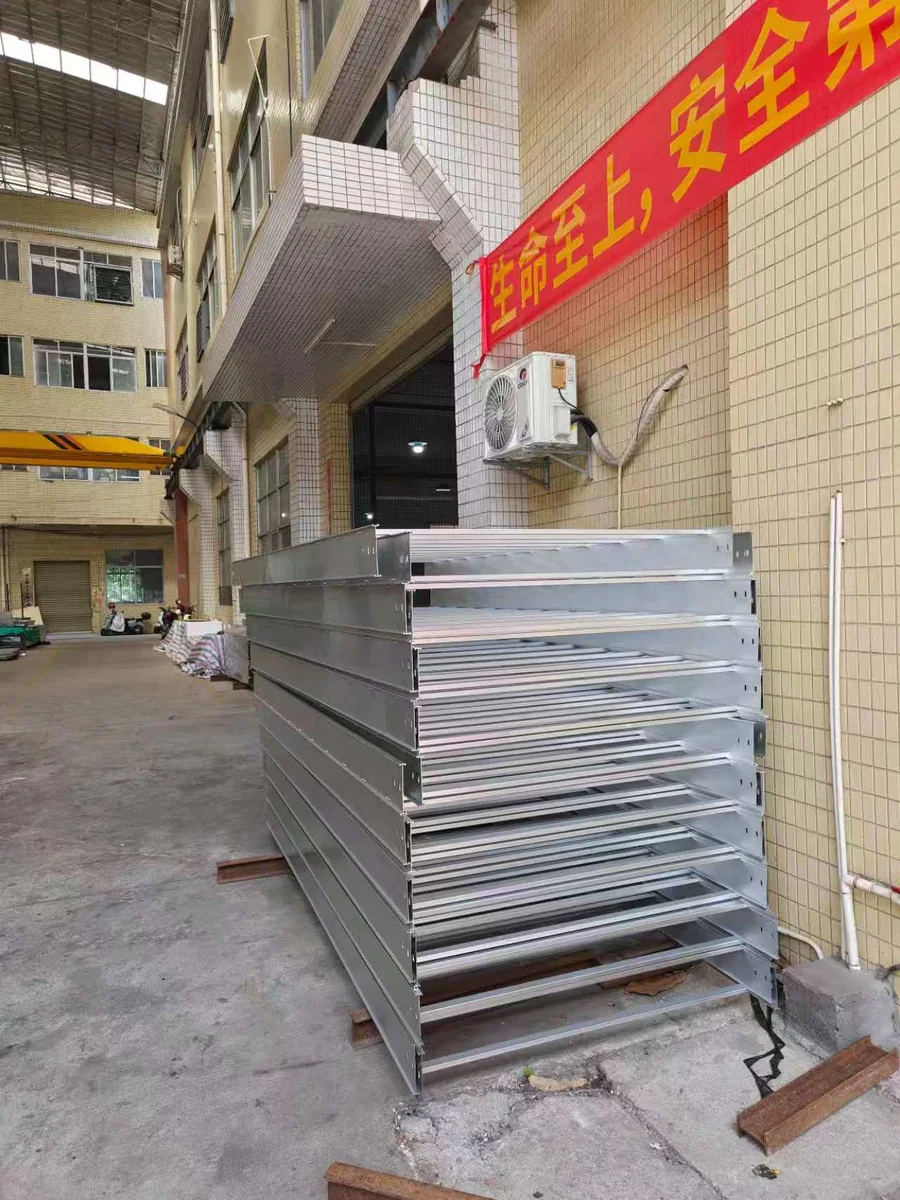

**Finished aluminum ladder cable tray stock, view 1**Company-provided finished aluminum ladder cable tray photo. Dimensions, thickness and alloy grade are confirmed per order.

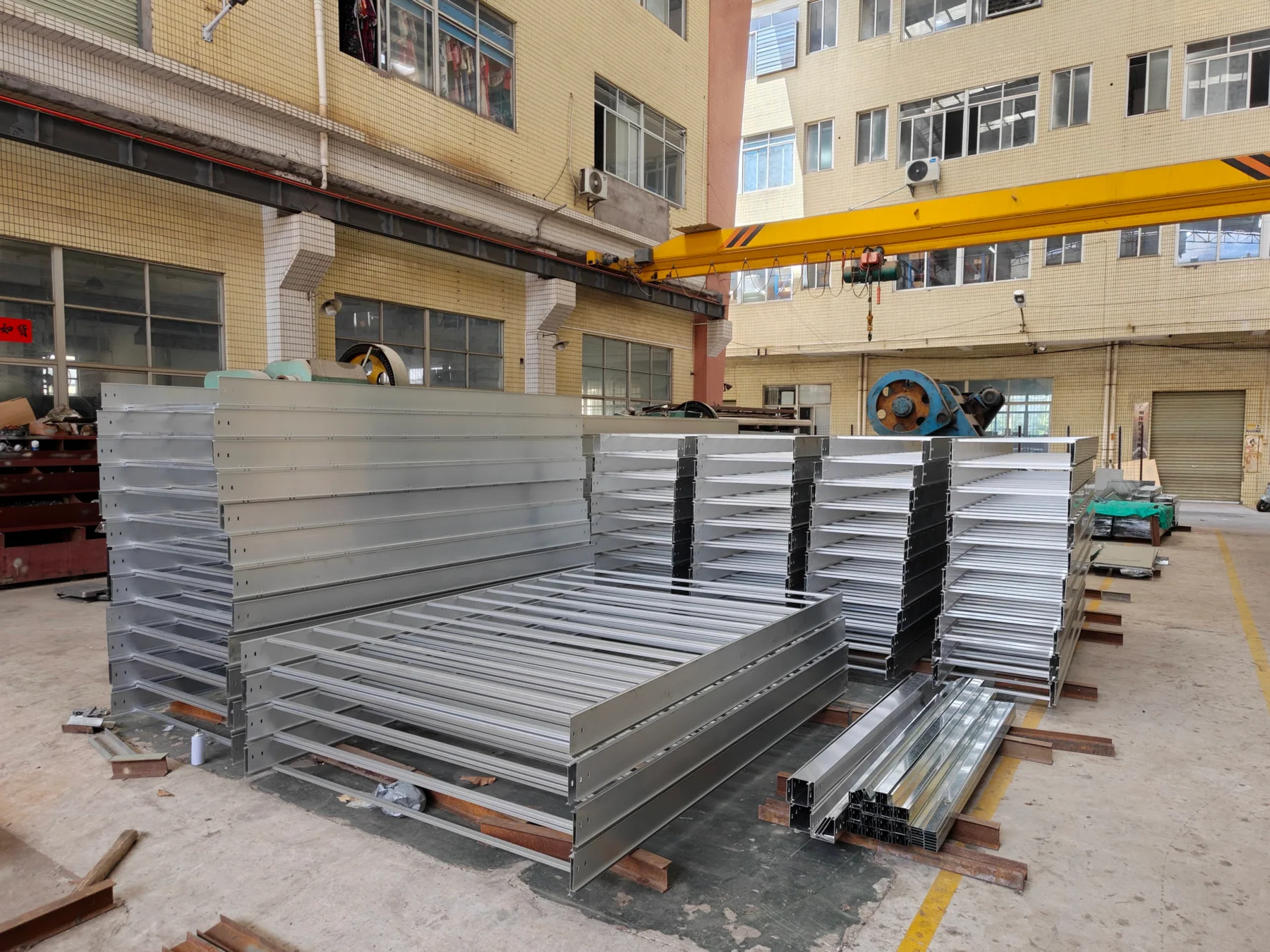

**Finished aluminum ladder cable tray stock, view 2**Multiple stacks of finished aluminum ladder cable trays shown in the workshop.

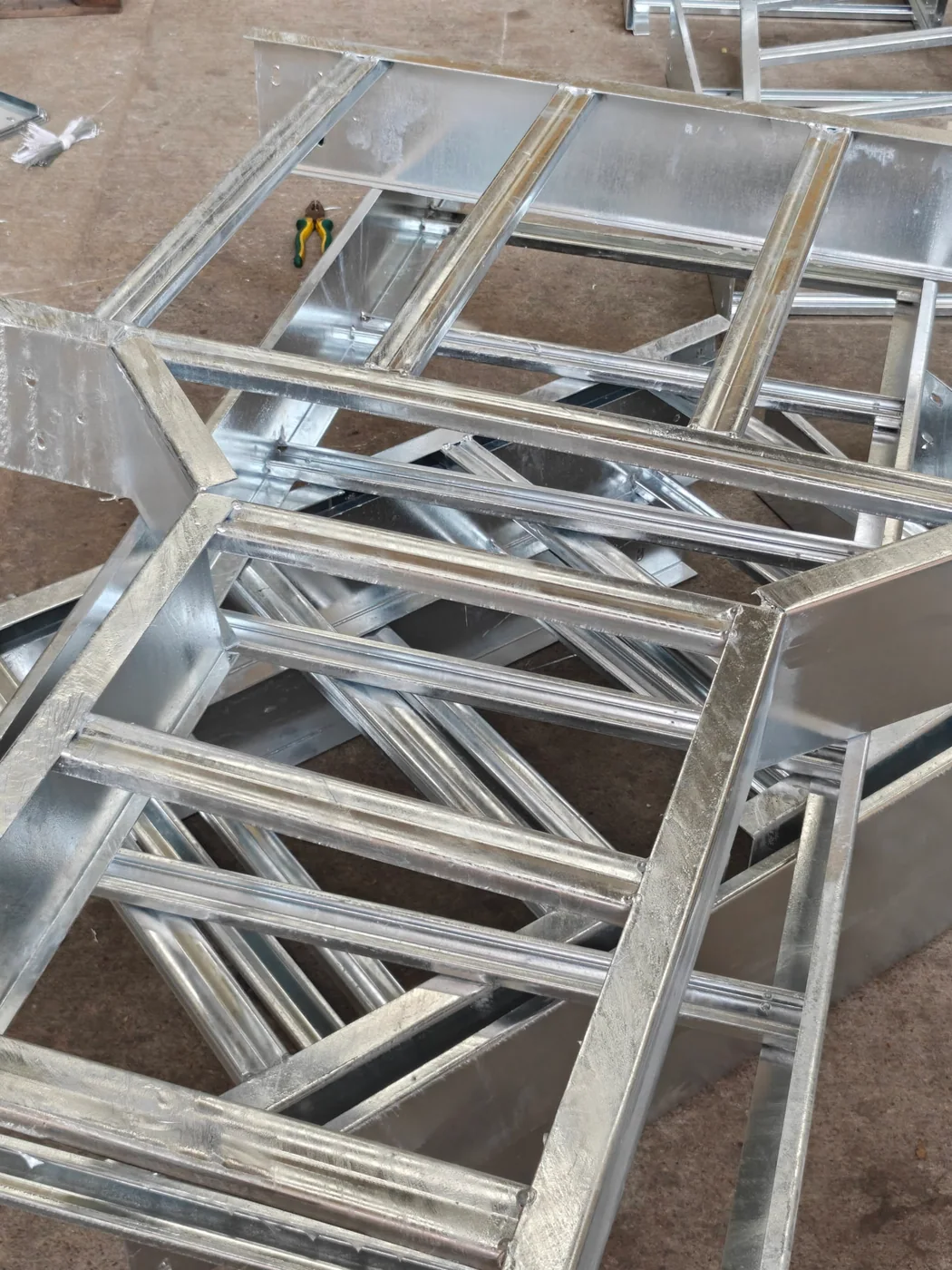

**Finished hot-dip galvanized ladder cable tray**Finished ladder cable tray shown after fabrication, welding and hot-dip galvanizing.

Coating evidence

Hot-dip galvanized cable tray field readings

Use the photographed values as examples of measured finished pieces. The RFQ should still define the standard edition, article type, base-steel thickness, sampling, average/local criteria and required documents.

Read the 86 μm RFQ guide

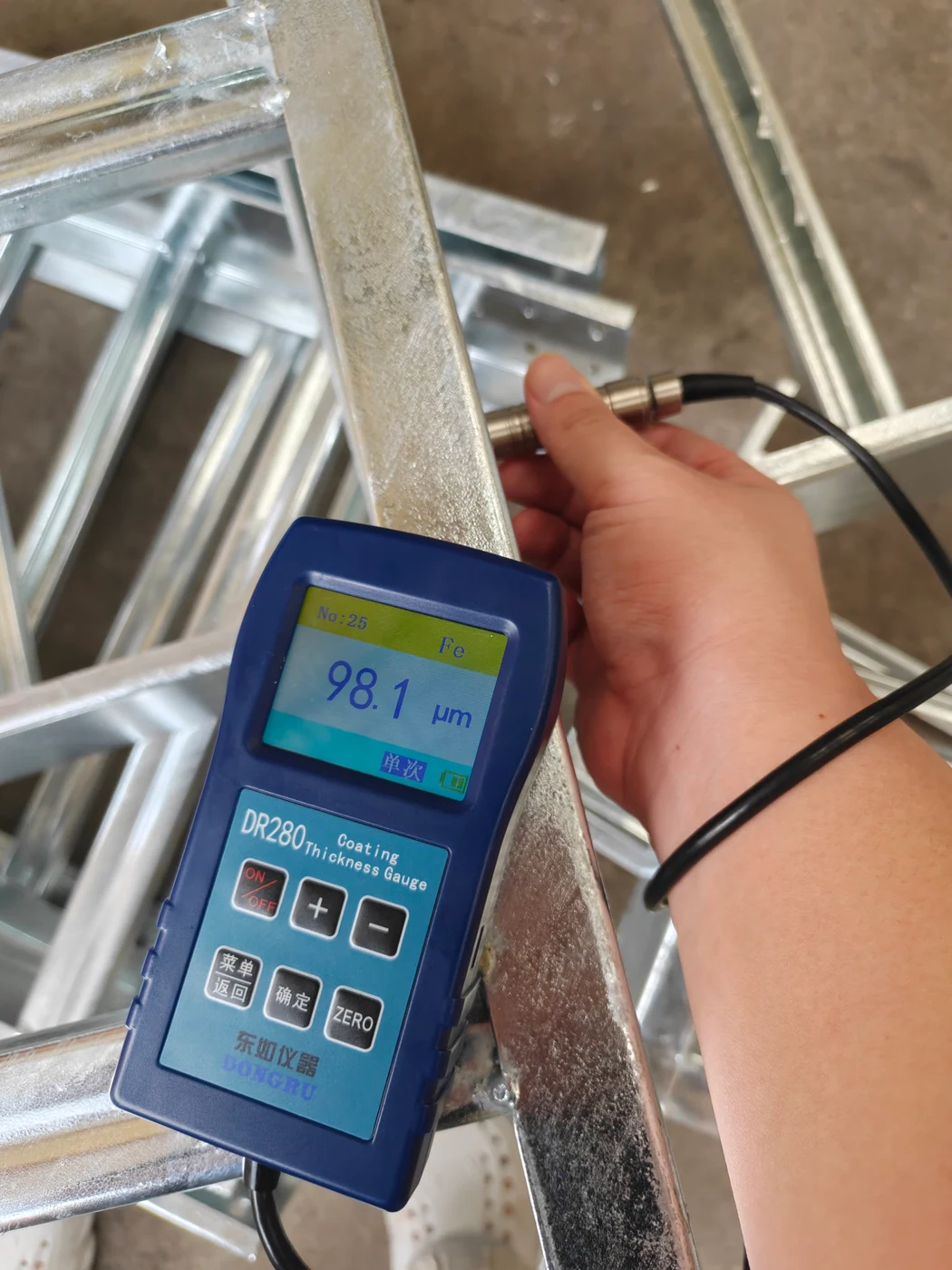

**Hot-dip galvanized cable tray field reading: 98.1 μm**The DR280 coating thickness gauge shown in the photo displays 98.1 μm at this point. This is a single field reading, not a substitute for batch records, a certificate or a third-party report.

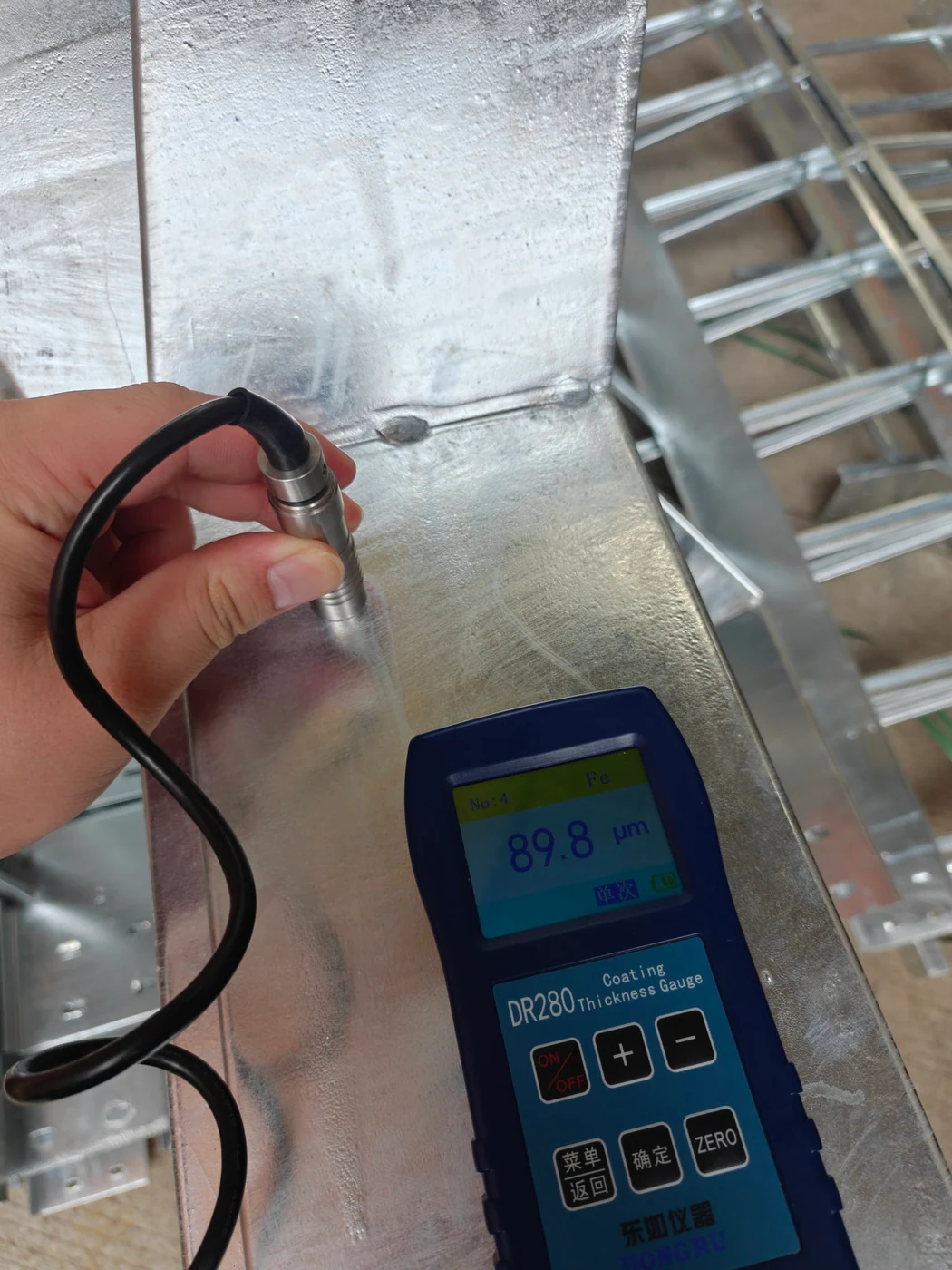

**Hot-dip galvanized cable tray field reading: 89.8 μm**The DR280 coating thickness gauge shown in the photo displays 89.8 μm at this point. This single reading is not the batch average or minimum result.

Evidence boundary: Field photos do not replace batch-specific multi-point records, a quality certificate or an agreed third-party report.

Identity and production

Operating-site identity and fabrication

The storefront details can be cross-checked against company records, website contact data and a customer site visit.

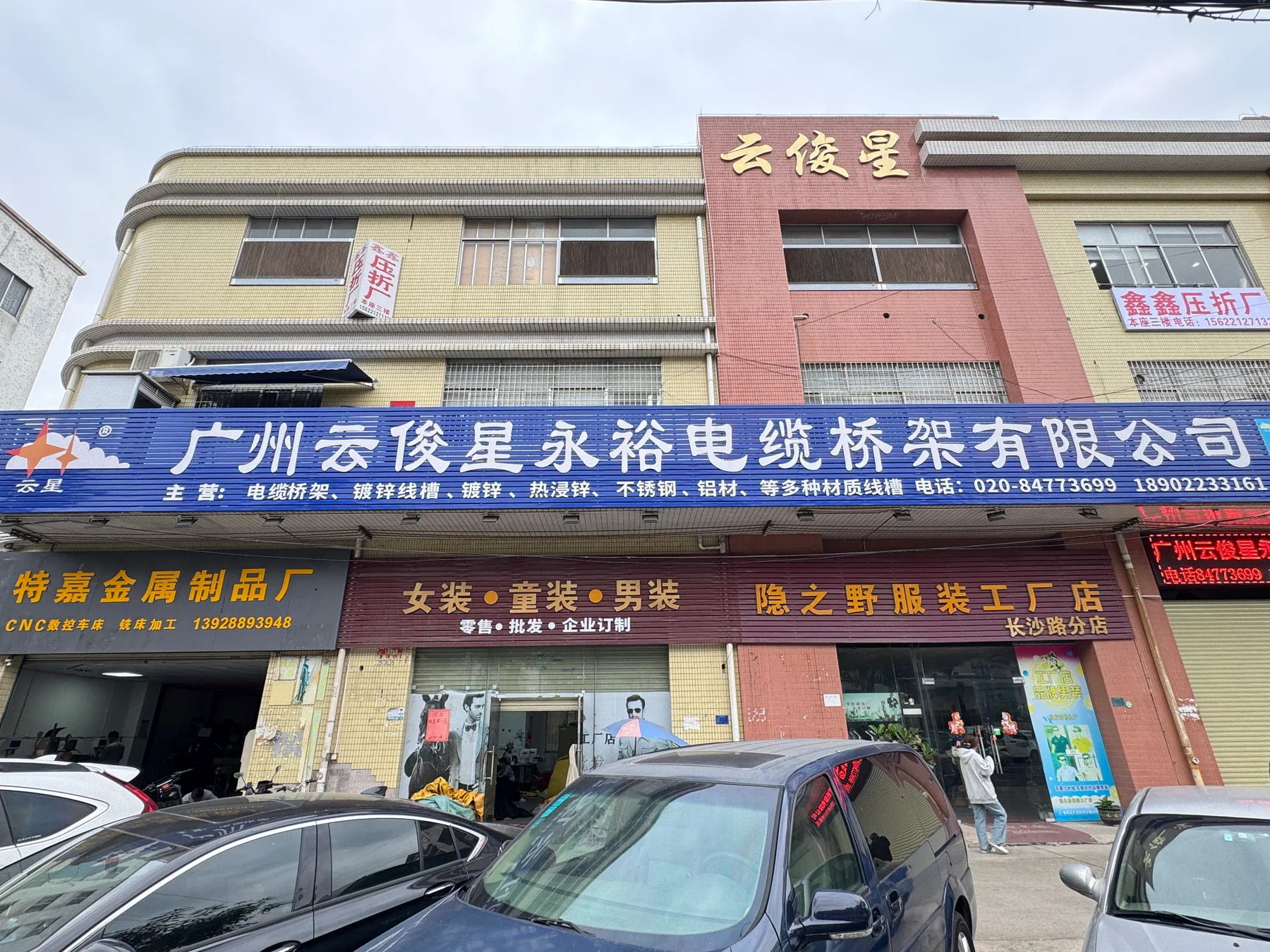

**Yunjunxing Yongyu factory storefront in Guangzhou**The storefront photo visibly shows the Yunxing mark, legal company name, product scope and telephone number. The source photo is retained by the company.

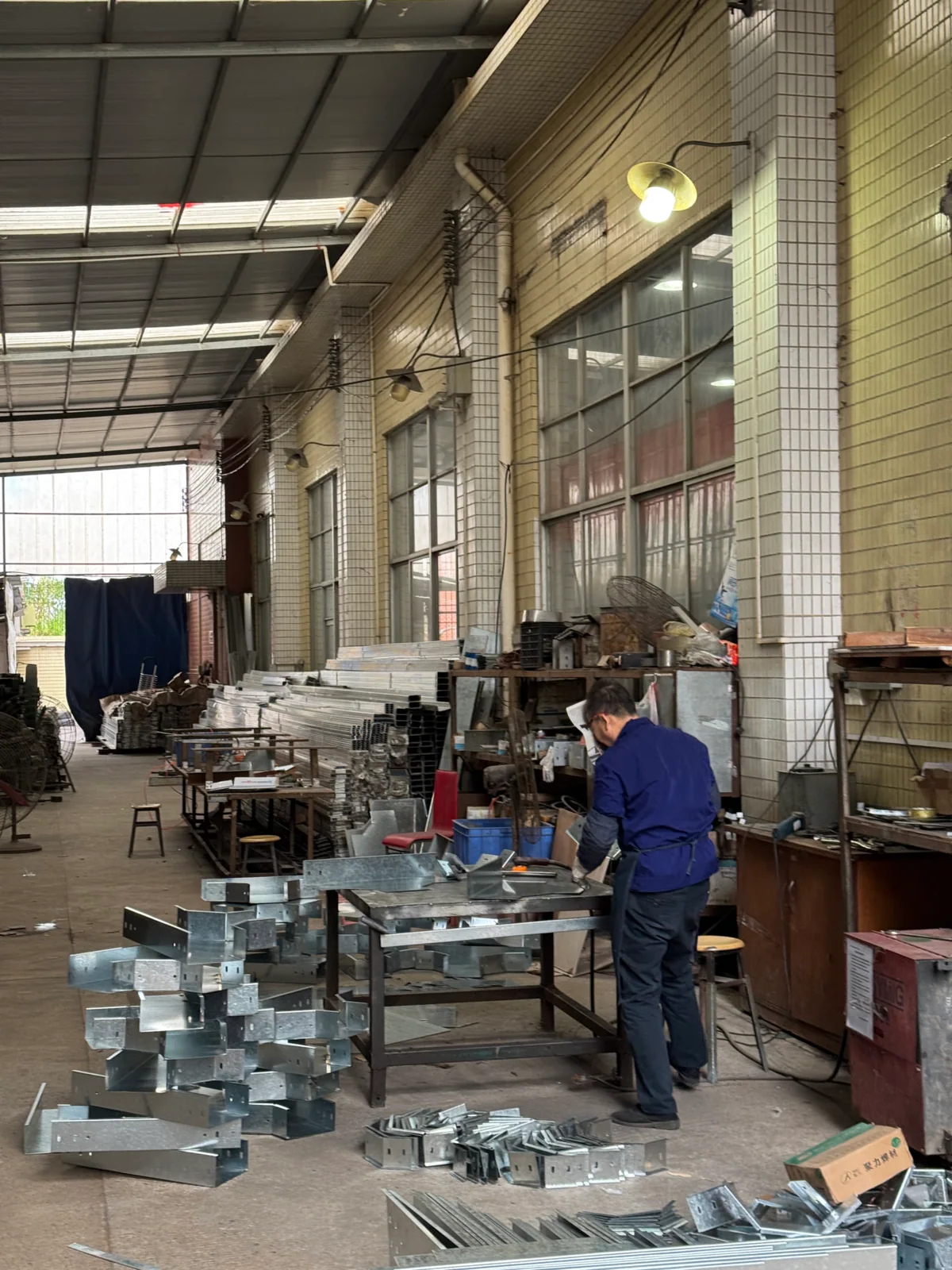

**Cable tray fitting fabrication**A worker fabricates cable tray fittings with semi-finished and matching components visible in the workshop.

Project RFQ

Send drawings, specifications and acceptance requirements

Manager Zeng: +86 18902233161; 645088276@qq.com. Include tray type, width, height, thickness, material, finish, fittings, quantity, delivery and inspection documents.
